UI Testing in Xcode

Wil Turner Developer Tools Brooke

Callahan Developer Tools


  • UI testing
    • Find and interact with UI elements
    • Validate UI properties and state
  • UI recording
  • Test reports



Xcode’s testing framework

  • Test case subclasses
  • Test methods
  • Assertions
  • Integrated with Xcode
  • CI via Xcode Server and xcodebuild
  • Swift and Objective-C

Testing Matrix



  • Rich semantic data about
  • UI UIKit and AppKit integration
  • APIs for fine tuning
  • UI tests interact with the app the way a user does


  • UI testing depends on new OS features
    • iOS 9
    • OS X 10.11
  • Privacy protection
    • iOS devices
      • Enabled for development
      • Connected to a trusted host running Xcode
    • OS X must grant permission to Xcode Helper
      • Prompted on first run

Getting Started

  • Xcode target type
  • APIs
  • UI recording

UI Testing Xcode Targets

  • UI tests have special requirements
    • Execute in a separate process
    • Permission to use Accessibility
  • New Xcode target templates
    • Cocoa Touch UI Testing Bundle (iOS)
    • Cocoa UI Testing Bundle (OS X)
  • “Target to be Tested” setting



Three new classes

  • XCUIApplication
  • XCUIElement
  • XCUIElementQuery

UI Recording

  • Interact with your app
  • Recording generates the code
    • Create new tests
    • Expand existing tests

What Did You See?

  • Adding a UI testing target
  • Using recording
    • Finding UI elements
    • Synthesizing user events
  • Adding validation with XCTAssert

UI Testing API



Testing the Add button

// application:
let app = XCUIApplication()

// element and query:
let addButton = app.buttons["Add"]

// assertion:
XCTAssertEqual(app.tables.cells.count, 1)



  • Proxy for the tested application
    • Tests run in a separate process
  • Launch
    • Always spawns a new process
    • Implicitly terminates any preexisting instance
  • Starting point for finding elements


  • Proxy for elements in application
  • Types
    • Button, Cell, Window, etc.
  • Identifiers
    • Accessibility identifier, label, title, etc.
  • Most elements are found by combining type and identifier

Element Hierarchy


Element Uniqueness

  • Every XCUIElement is backed by a query
  • Query must resolve to exactly one match
    • No matches or multiple matches cause test failure
    • Failure raised when element resolves query
  • Exception
    • exists property

Event Synthesis

  • Simulate user interaction on elements
  • APIs are platform-specific
button.click() // OS X
button.tap() // iOS
textField.typeText("Hello, World!") // iOS & OS X


API for specifying elements

  • Queries resolve to collections of accessible elements
    • Number of matches:count
    • Specify by identifier: subscripting
    • Specify by index:elementAtIndex()

How do queries work?

  • Relationships
  • Filtering

Expressing relationships

  • Descendants
  • Children
  • Containment



  • Element type
    • Button, table, menu, etc.
  • Identifiers
    • Accessibility identifier, label, title, etc.
  • Predicates
    • Value, partial matching, etc.

Combining Relationships and Filtering


So common, we provide convenience API for each type

let allButtons = app.descendantsMatchingType(.Button)
let allCellsInTable = table.descendantsMatchingType(.Cell)
let allMenuItemsInMenu = menu.descendantsMatchingType(.MenuItem)

can also:

let allButtons = app.buttons
let allCellsInTable = table.cells
let allMenuItemsInMenu = menu.menuItems


Differentiates between any descendant and a direct child relationship

let allButtons = app.buttons // descendantsMatchingType(.Button)
let childButtons = navBar.childrenMatchingType(.Button)


Find elements by describing their descendants

let cellQuery = cells.containingType(.StaticText, identifier:"Groceries")

Predicate variant also available



Combining relationships and filtering


Combining Queries

Queries can be “chained” together Output of each query is the input of the next query

let labelsInTable = app.tables.staticTexts


Getting Elements from Queries

  • Subscripting
    • table.staticTexts[“Groceries”]
  • Index
    • table.staticTexts.elementAtIndex(0)
  • Unique
    • app.navigationBars.element

Evaluating Queries

  • Queries are evaluated on demand
  • XCUIElement
    • Synthesizing events
    • Reading property values
  • XCUIElementQuery
    • Getting number of matches (.count)
    • Getting all matches (.allElementsBoundByAccessibilityElement)
  • Re-evaluated when UI changes

Queries and Elements

Similar to URLs

  • Creating a URL does not fetch a resource
    • URL could be invalid, error raised when requested
  • Queries and elements
    • Just a specification for accessible elements in the tested application
    • Not resolved until needed

API Recap


Accessibility and UI Testing


Debugging tips

  • Not accessible
    • Custom view subclasses
    • Layers, sprites, and other graphics objects
  • Poor accessibility data
  • Tools
    • UI recording
    • Accessibility inspectors

Improving data

  • Interface Builder inspector
  • API
    • UIAccessibility (iOS)
    • NSAccessibility (OS X)


What Did You See?

  • Advanced UI testing
  • Correcting queries
  • Looping over elements
  • Improving accessibility

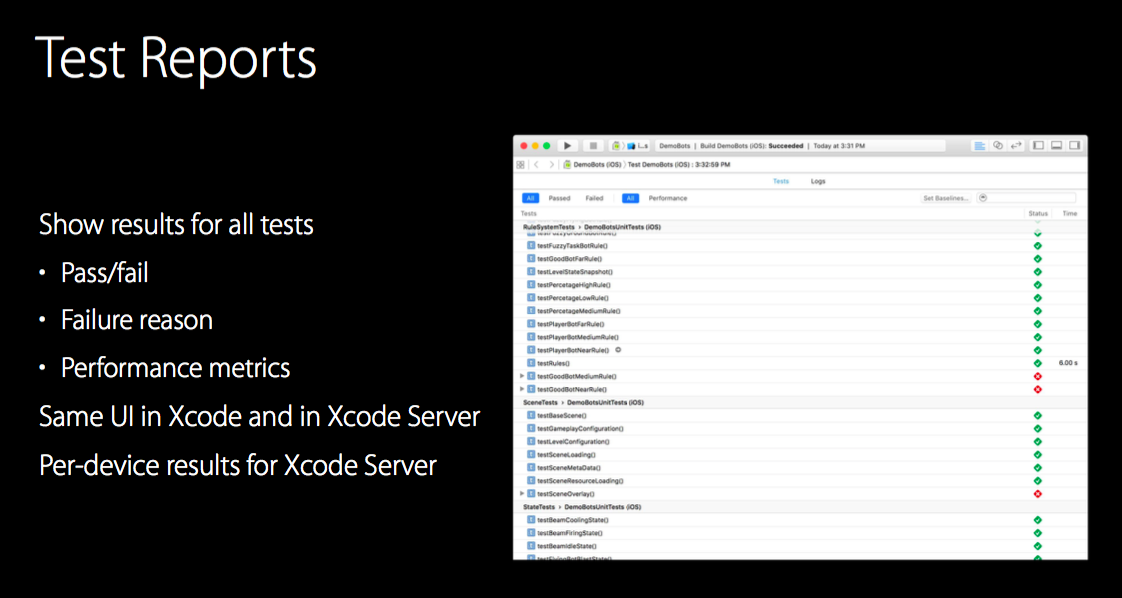

Test Reports

  • UI Refresh

  • Show results for all tests
    • Pass/fail
    • Failure reason
    • Performance metrics
  • Same UI in Xcode and in Xcode Server
  • Per-device results for Xcode Server


UI testing additions

  • New data
  • Screenshots
  • Nested activities

Nested activities

  • UI testing APIs have several steps
  • Typing into a textfield
    • Wait for the app to idle
    • Evaluate the textfield query
    • Synthesize the text input
    • Wait for the app to idle
  • QuickLook for screenshots


When to Use UI Testing

Using UI Testing

  • Complements unit testing
  • Unit testing more precisely pinpoints failures
  • UI testing covers broader aspects of functionality
  • Find the right blend of UI tests and unit tests for your project

Candidates for UI Testing

  • Demo sequences
  • Common workflows
  • Custom views
  • Document creation, saving, and opening


  • UI testing
    • Find and interact with UI elements
    • Validate UI properties and state
  • UI recording
  • Test reports

More Information

Testing in Xcode Documentation


Accessibility for Developers Documentation


Apple Developer Forums
